Motherboards

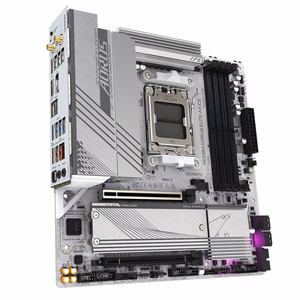

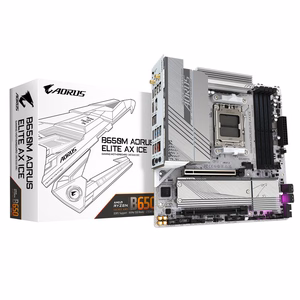

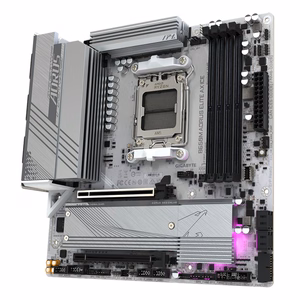

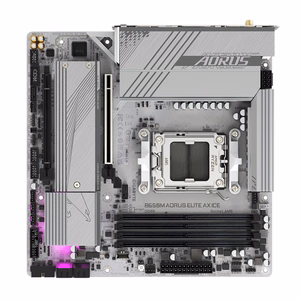

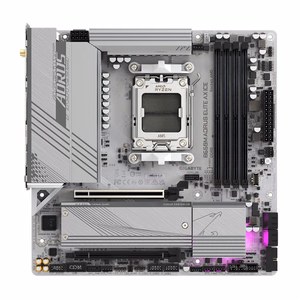

GIGABYTE B650M A ELITE AX ICE
SKU: 4719331859336
Price
€168.99
- 14 dienų grąžinimas
- Gamintojo garantija
- Saugus atsiskaitymas
- Nemokamas pristatymas nuo 30.00 € To Unisend / SmartPosti parcel locker
Delivery
Pick up at our store
October 28
(FREE)
Pick up at Omniva, LP Express, SmartPosti parcel locker
October 29‑30
(from 2.29 €)
(FREE from 30 €)
Delivery to home / office
October 29 - November 3
(from 4.90 €)
Technical Specifications
- Motherboard form factor
- Micro-ATX
- Chipset
- B650
- Warranty
- 36 mėn.
- Socket
- AM5
- USB 2.0 port count
- 4
- Supported storage drive types
- HDD & SSD
- Motherboard chipset family
- AMD
- RAID support
- Yes
- SATA ports
- 4
- Supported storage interfaces
- M.2, SATA III
- Maximum RAM
- 256 GB
- Number of memory slots
- 4
- Supported Wi-Fi standards
- Wi-Fi 3, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Wi-Fi 1, Wi-Fi 2
- Wi-Fi
- Yes
- Compatible processor series
- AMD Ryzen 7000 Series; AMD Ryzen 9000 Series; AMD Ryzen 8000 Series
- Number of M.2 slots
- 2
- Processor manufacturer
- AMD
- RGB lighting
- Yes
- Wi-Fi standards
- Wi-Fi 6E
- Memory channels
- Dual-channel
- CPU fan connectors
- Yes
- PCIe 4.0 x16 slots
- 2
- Bluetooth version
- 5.3
- Product depth
- 24.4 cm
- Product width
- 24.4 cm
- Maximum supported memory speed
- 8000 MHz
- Product height
- 3.5 cm
- Supported memory types
- DDR5-SDRAM
- Memory slot type
- DIMM
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Bluetooth
- Yes
- Supported memory speeds
- 6000; 6600; 5600; 7200 MHz; 5200; 6800; 8000; 6400; 7000; 4400; 4800; 6200; 6666; 7600; 7800
- WLAN controller model
- Realtek RTL8852CE
- Unbuffered memory
- Yes
- Number of battery cells
- 1
- Ethernet LAN
- Yes
- HDMI version
- 2.1
- Maximum resolution
- 4096 x 2304 pixels
- Ethernet ports
- 1
- Country of origin
- China
- Audio chip
- Realtek ALC897
- DisplayPort version
- 1.4
- Headphone jack
- Yes
- Screws included
- Yes
- HDMI ports
- 1
- DirectX version
- 12.0
- Battery weight
- 3 g
- Supported devices
- PC
- Windows operating system support details
- Windows 10 x64/Windows 11 x64
- Model
- B650M AORUS ELITE AX ICE 1.1
- Battery included
- Yes
- Ethernet speed
- 2.5 Gbps
- Safety warnings
- Dispose of in accordance with local regulations for electronic equipment., Do not disassemble the unit yourself., Do not expose to water or other liquids.
- Windows operating systems supported
- Windows 10, Windows 11
- Connector type
- ATX 24-pin
- PC Health Monitoring Parameters
- Fan/Temperature/Voltage/Water cooling
- Audio channels
- 7.1 channels
- ECC Memory Compatibility
- Non-ECC
- Maximum Memory per Slot
- 64 GB
- Number of HDD slots
- 4
- Number of supported storage drives
- 6
- RAID level
- 0/1/10
- Parallel processing technology
- Not supported
- HDCP support
- Yes
- USB 3.2 Gen 2x2 Connector Count
- 1
- Front Panel Audio Connector
- Yes
- Front Panel Header Connector
- Yes
- ATX power connector (20+4 pin)
- Yes
- CPU Fan Connector
- Yes
- Chassis Fan Connector Count
- 4
- 12V Power Connector
- Yes
- Water Pump Connector Count
- 2
- Serial Port Header Count
- 1
- TPM Header
- Yes
- RGB LED pin header
- Yes
- RGB LED Pin Header Count
- 5
- USB 3.2 Gen 1 Type-A ports
- 5
- USB 3.2 Gen 2 Type-A ports
- 2
- USB 3.2 Gen 2 Type-C port count
- 1
- DisplayPort ports
- 1
- Headphone Output Count
- 1
- Line-in Port
- Yes
- S/PDIF Out Connector
- Yes
- Number of antennas
- 2
- M.2 SSD size
- 25110
- M.2 Slot 1 PCIe Generation
- 5
- M.2 Slot 2 Key Size
- 25110
- M.2 Slot 2 PCIe Generation
- 4
- BIOS Firmware Type
- UEFI AMI
- BIOS Memory Size
- 256 Mbit
- BIOS ACPI Version
- 5.0
- Clear CMOS Jumper
- Yes
- BIOS DMI Version
- 2.7
- BIOS SMBIOS Version
- 2.7
- Lithium Content Weight per Battery
- 0.07 g
- Antenna Included
- Yes
- Weight
- 1.9 kg
