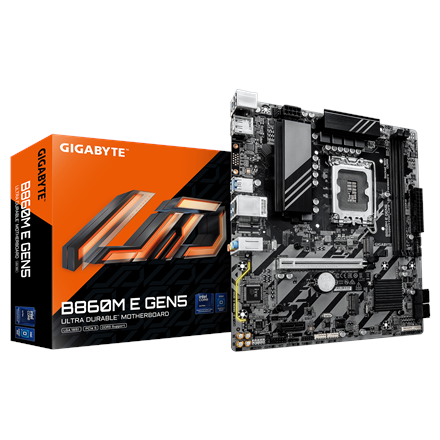

Gigabyte B860M E GEN5 motherboard, Intel LGA1851, DDR5, 4 SATA connectors, M.2
SKU: 4719331879853
Price
€112.99
- 14 dienų grąžinimas
- Gamintojo garantija
- Saugus atsiskaitymas
- Nemokamas pristatymas nuo 30.00 € To Unisend / SmartPosti parcel locker
Delivery
Pick up at our store
November 11
(FREE)
Pick up at Omniva, LP Express, SmartPosti parcel locker
November 12‑13
(from 2.29 €)
(FREE from 30 €)
Delivery to home / office
November 12‑16
(from 4.90 €)
Technical Specifications
- Socket
- LGA 1851
- Weight
- 1 kg
- Processor manufacturer
- Intel
- Supported memory types
- DDR5
- Warranty
- 36 mėn.
- Wi-Fi
- No
- Maximum RAM
- 128 GB
- SATA ports
- 4
- Motherboard form factor
- Micro-ATX
- Number of memory slots
- 2
- Number of M.2 slots
- 2
- Chipset
- B860
- Audio chip
- Realtek ALC897
- PC Health Monitoring Parameters
- Fan/Temperature/Voltage/Water cooling
- Supported devices
- PC
- Audio channels
- 7.1 channels
- Cooling type
- Passive
- Motherboard chipset family
- Intel
- Windows operating system support details
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- Intel Core Ultra (Series 2)
- Memory slot type
- DIMM
- Memory channels
- Dual-channel
- ECC Memory Compatibility
- ECC & Non-ECC
- Supported memory speeds
- 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
- Maximum supported memory speed
- 8800 MHz
- Unbuffered memory
- Yes
- Maximum Memory per Slot
- 64 GB
- Supported storage drive types
- HDD & SSD
- Supported storage interfaces
- M.2,PCI Express 4.0,SATA III
- Number of HDD slots
- 4
- Number of supported storage drives
- 6
- RAID support
- Yes
- RAID level
- 0/1/10/5
- Parallel processing technology
- Not supported
- Maximum resolution
- 4096 x 2160 pixels
- HDCP support
- Yes
- HDCP version
- 2.3
- DirectX version
- 12.0
- S/PDIF Out Connector
- Yes
- Front Panel Audio Connector
- Yes
- Front Panel Header Connector
- Yes
- ATX power connector (20+4 pin)
- Yes
- CPU Fan Connector
- Yes
- CPU fan connectors
- 2
- Chassis Fan Connector Count
- 1
- EPS power connector
- Yes
- EPS Power Connector Count
- 1
- Water Pump Connector Count
- 2
- Serial Port Header Count
- 1
- TPM Header
- Yes
- RGB LED pin header
- Yes
- RGB LED Pin Header Count
- 2
- USB 2.0 port count
- 2
- USB 3.2 Gen 1 Type-A ports
- 4
- Ethernet ports
- 1
- PS/2 Port Count
- 1
- HDMI ports
- 1
- HDMI version
- 2.1
- DisplayPort ports
- 1
- DisplayPort version
- 2.1
- Headphone Output Count
- 1
- Line-in Port
- Yes
- Microphone input
- Yes
- Ethernet LAN
- Yes
- Ethernet speed
- 1 Gbps
- PCIe 3.0 x1 Slots
- 1
- PCIe 5.0 x16 slots
- 1
- M.2 SSD size
- 2280
- M.2 Slot 1 PCIe Generation
- 4
- M.2 slot 2 maximum size code
- 2280
- M.2 Slot 2 PCIe Generation
- 4
- BIOS Firmware Type
- UEFI AMI
- BIOS Memory Size
- 256 Mbit
- BIOS ACPI Version
- 5.0
- Clear CMOS Jumper
- Yes
- BIOS DMI Version
- 2.7
- BIOS SMBIOS Version
- 2.7
- Country of origin
- China
- Battery weight
- 3 g
- Lithium Content Weight per Battery
- 0.07 g
- Number of battery cells
- 1
- Battery capacity
- 220 mAh
- Product width
- 24.4 cm
- Product depth
- 21.5 cm
- Product height
- 3.5 cm
- Battery included
- Yes
- Screws included
- Yes
- Bundled software
- Norton®Internet Security (OEM version)
- Power supply type
- ATX
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processors
- Intel Core Ultra (Series 2)
- Supported HDD count
- 4
- SATA III connector count
- 4
- Internal ATX power connector
- Yes
- CPU fan header count
- 2
- Rear-panel microphone/line-in jack
- Yes
- Ethernet LAN interface type
- Gigabitinis eternetas
- LAN controller
- Realtek RTL8111H
- M.2 slot 1 maximum size code
- 2280
- Battery capacity specification
- 220 mAh
- Battery technology
- Lithium-manganese dioxide (LiMnO2)
- Battery type
- CR2032
- Length
- 215 mm
