DVR & NVR Recorders
Dahua NVR4108HS-4KS3 8-Channel Network Video Recorder, 1 HDD Bay, up to 12 MP
SKU: 6923172570680
Price
€109.99
- 14 dienų grąžinimas
- Gamintojo garantija
- Saugus atsiskaitymas
- Nemokamas pristatymas nuo 30.00 € To Unisend / SmartPosti parcel locker
Delivery
Pick up at our store
October 15
(FREE)
Pick up at Omniva, LP Express, SmartPosti parcel locker
October 16‑19
(from 2.29 €)
(FREE from 30 €)
Delivery to home / office
October 16‑20
(from 4.90 €)
Description
The Dahua NVR4108HS-4KS3 is a 8-channel Lite network video recorder for IP surveillance systems. It supports IP-camera streams up to 12 MP and uses an embedded Linux operating system.
Video and intelligent functions
- Network bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing.
- Decoding capability: With recorder AI disabled: up to 1 × 12 MP, 2 × 8 MP, 3 × 5 MP, 4 × 4 MP or 8 × 1080p at 30 fps; with AI enabled: up to 1 × 12 MP, 1 × 8 MP, 2 × 5 MP, 3 × 4 MP or 7 × 1080p at 30 fps.
- Intelligent functions: Recorder-side SMD Plus on 4 channels; compatible cameras can provide additional AI functions.
- Video compression: Smart H.265+, H.265, Smart H.264+ and H.264.

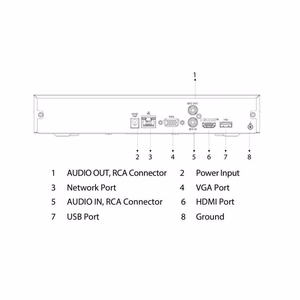

- Video outputs: 1 HDMI and 1 VGA; HDMI output supports up to 3840 × 2160.
- Third-party camera support includes ONVIF; mobile access supports iOS and Android.
Storage and connections
- Storage: 1 SATA bay, up to 20 TB; maximum capacity can vary with ambient temperature.
- Network: 1 × RJ-45 10/100 Mbps Ethernet port.
- USB: 1 front and 1 rear USB 2.0 port.
- Audio: 1 RCA input and 1 RCA output.
General data
- Power: 12 VDC, 2 A; under 10 W without an HDD.

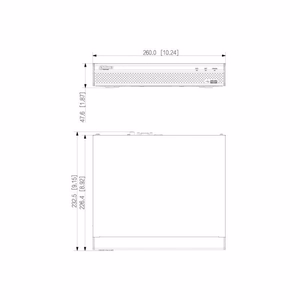

- Dimensions: 260.0 × 232.5 × 47.6 mm; net weight: 0.81 kg.
- Operating temperature: -10 °C to +55 °C; operating humidity: 10%–93% RH, non-condensing.
Technical Specifications
- Warranty
- 36 mėn.
- Operating relative humidity
- 10 - 93%
- Storage temperature range
- -20 - 60 °C
- Rack mounting
- Yes
- HDMI ports
- 1
- Operating temperature range
- -10 - 55 °C
- Ethernet ports
- 1
- Maximum frame rate
- 30 fps
- Audio formats
- G.726; G.711 A-law; G.711 μ-law; PCM
- Product width
- 26 cm
- Ethernet LAN data rates
- 10 Mbit/s; 100 Mbit/s
- Product depth
- 23.25 cm
- Built-in processor
- Yes
- USB 2.0 port count
- 2
- Power consumption
- 10
- Output current specification
- 2 A
- Operating system installed
- Embedded LINUX
- Output voltage
- 12 V V
- Mobile operating systems supported
- iOS, Android
- Weight
- 810 g
- Product height
- 4.76 cm
- Ethernet speed
- 100 Mbps
- Output ports
- 1
- Built-in display
- No
- Mobile operating system support details
- Android/iOS
- Model
- DHI-NVR4108HS-4KS3
- Model name
- DHI-NVR4108HS-4KS3
- Bandwidth
- 80 Mbit/s
- RCA audio outputs
- 1
- Video compression formats
- H.264, H.265
- Video motion detection
- Yes
- VGA (D-Sub) port count
- 1
- Output Bandwidth
- 60 Mbit/s
- Safety warnings
- Do not expose to high temperatures., Protect against moisture.
- Video recording modes
- 1080p, 2160p, 720p
- Maximum resolution
- 3840 x 2160 pixels
- Supported resolutions
- 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- People counting
- Yes
- Face detection
- Yes
- Number of HDD slots
- 1
- Storage capacity
- 20 TB
- Host interface
- SATA
- PoE support
- Yes
- Audio RCA input
- Yes
- Supported network protocols
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search
- Height in rack units
- 1U
